Description

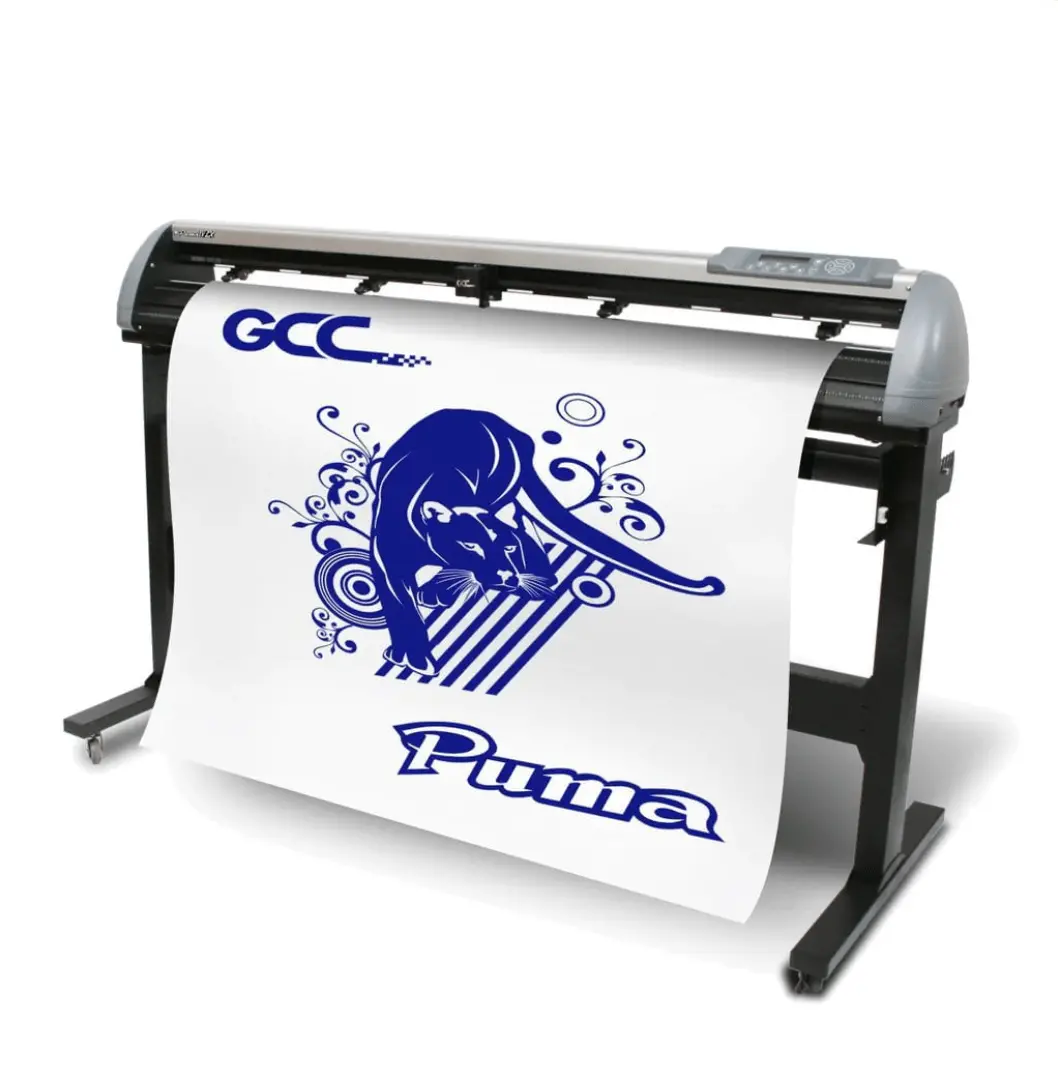

New GCC P4-132LX 57.87″ Inch Media Size Puma IV Vinyl Cutter With Enhanced AAS II Contour Cutting System, LCD and Max Cutting Size 51.18″ Inch. Perfect for Window Tinting and PPF Cutting.

The new Puma IV P4-132LX enhances its capability to complete a variety of applications with great efficiency, which satisfies your different needs in the sign industry. Powered by a digitally controlled servo system, the Puma IV P4-132LX produces eye-catching graphics with up to 40 ips (1020 mm/sec) cutting speed, 500 g of cutting force and 5 meters (16.4 feet) of tracking ability.

Puma:
Ideal uses of this superior PUMA GCC Plotter include:

• Custom Vinyl Decals & Graphics cutting for Cars, Walls & More
• Custom Perforated car window stickers
• Car Wrapping (vehicle clear/preprinted wrapping machine)
• Car Stickers (Custom vehicle, Boats, Sea-doo and Trailer stickers)
• Film paper die-cutting machine
• Commercial vinyl die-cutting machine
• Custom Vinyl Signs
• Plotting different types of heat transfer media for T-shirts and apparel decoration.
• Custom cutting of sublimation transfers, rhinestone transfers, and screen-printed transfers
• Sandblasting film cutting
• Light Box Film (Lightbox filming cutting machine)
• 3m diamond grade reflective film
• invisible car clothing
• graphics and lettering cutting
• Vinyl adhesive film

This unit can also be used for:

Window Tinting and PPF (Paint Protection Film).

Specifications

• Operational Method – Roller-Type
• Max. Cutting Width – 1300 mm(51.18 in.)
• Max. Media Loading Width – 1470 mm(57.87 in.)
• Min. Media Loading Width – 50 mm (1.97 in.)
• Number of Pinch Rollers – 4
• Acceptable Material Thickness – 0.8 mm (0.03 in.)
• Drive Motor – DC Servo Control
• Max. Cutting Force – 500 g
• Max. Cutting Speed(Diagonal) – 1,020 mm/s(40.2 ips) (at 45° direction)
• Offset – 0-1.0 mm (with an increase of 0.025 mm)
• Mechanical Resolution – 0.009 mm (0.00035″)
• Software Resolution – 0.025 mm (0.00098″)
• Distance Accuracy – ±0.254 mm or ±0.1% of move, whichever is greaterr
• Repeatability – ±0.1mm
• Memory Size – 32 MB /16 MB (when using AAS)
• Interfaces – USB 2.0 (High speed), Serial (RS-232C), Ethernet
• Commands – HP-GL, HP-GL/2
• Automatic-Aligning System – Available on Puma IV LX models,
  including Segmental Positioning and Auto Rotation functions
• Configurable Origin – Yes
• Curve & Arc Smoothing – Yes
• Test Cut Capability – Yes
• Repeat Function – Yes
• Copy Function – Yes
• Tangential Mode – Yes
• Overcut Capability – Yes
• Pause and Move – Yes
• Control Panel – LCM (20 digits X 2 lines), 14 Keys , 1 power LED
• Diameter of Blade – 2.5 mm
• Dimension(H x W x D) mm – 1065 x 1632 x 620 mm (Stand Including ) 41.93 x 64.25 x 24.41 in.
• Net Weight – 53 kg / 116.4 lb
• Power Supply – AC 100-240V, 50~60 Hz (auto switching)
• Power Consumption – Max. 170 W
• Environment Humidity – 25%~ 75% relative humidity (operating)
• Environment Temperature – 15°-30°C (60°-86°F)

Features

Enhanced AAS II Contour Cutting SystemThe Puma IV series features a standard Automatic-Aligning System(AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:

1st-mark auto-detection	4-point positioning
Segmental positioning	Multiple copies

Triple Port ConnectivityPuma IV series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Puma IV. Ethernet connection enables multiple Puma IV to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides users a great flexibility for data transmission.Section CuttingSection cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Puma IV series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.Auto RotationNew registration marks defined to detect material feeding direction. Puma IV detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.Segmental PositioningPuma IV series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.Tracking AbilityThe exclusive grid drum is precisely engineered to provide superb tracking ability.VersatilityPuma IV is a versatile machine with the ability to plot and cut without having to alter the plotter’s mechanical configuration. For vector cutting, simply install a blade holder; for plotting, simply install the drawing pen or a ballpoint pen.Accurate and Smooth OperationPuma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation.Handy Grooved Cut-Off ToolThis handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material.Windows DriversPuma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV.Friendly OperationThe user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed and cutting force. Buttons on the Puma IV include frequently used functions such as speed, force, offset and cut test. 4 sets of prestored job settings for frequently used material can be stored in Puma IV. These settings include cutting speed, blade offset, cutting force, as well as movement speed during tool-up and cutting.
