Description

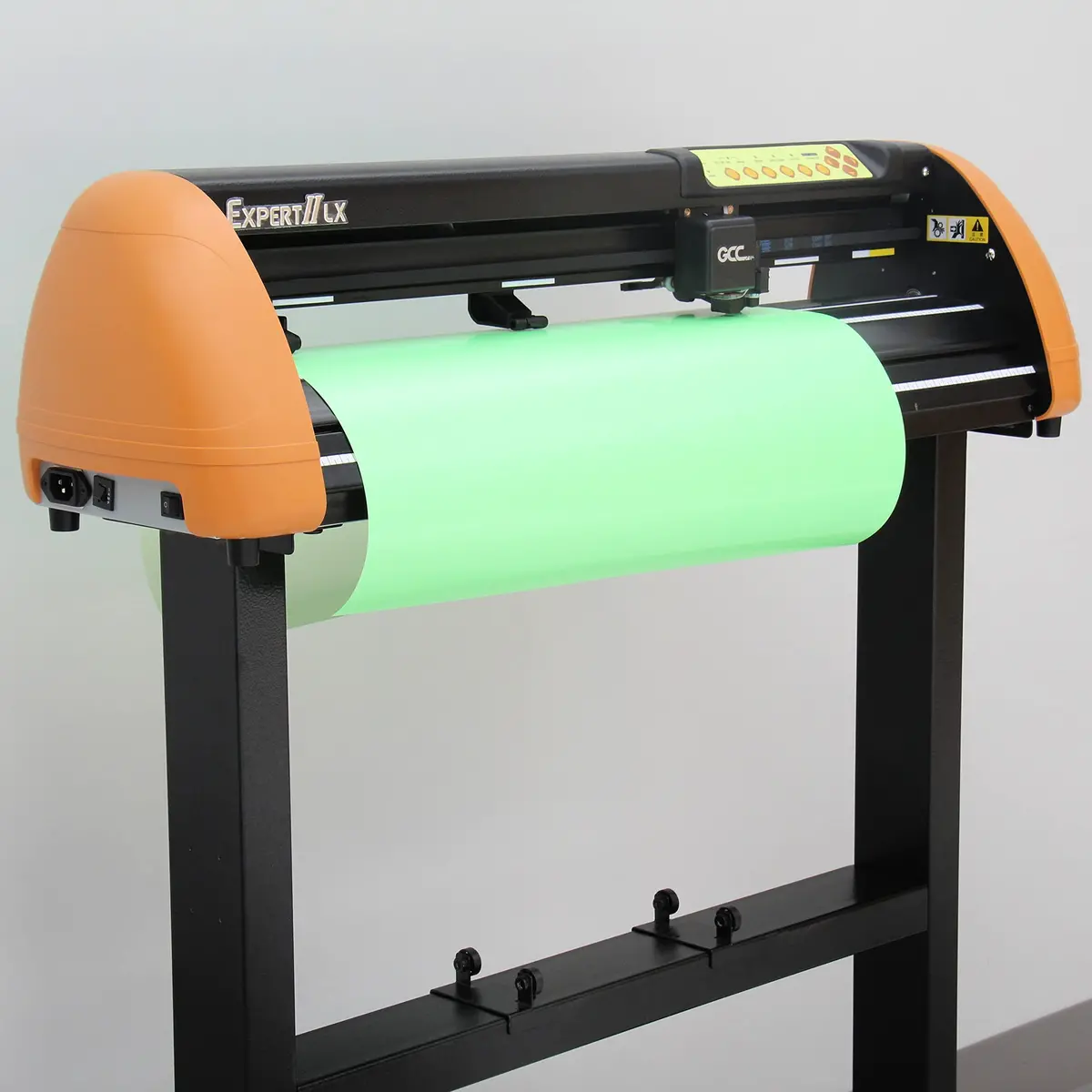

GCC Expert II With Stand – EX II-24LX 28.3″ Inch Media Size Vinyl Cutter With Enhanced AAS II Contour Cutting System and Guaranteed 3 Meter (9.84 FT) tracking. (Max Cutting Size of 23.6″ Inch)
Open Financing and Leasing are available.
PayPlan by RBC – Get pre-approved for a flexible 12 to 48-month OPEN LOAN in just 5 seconds. Receive an answer in seconds by simply providing your name, phone number, and date of birth. Start your application here!
Expert II EX II-24LX is the best choice for beginners and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value. Expert II EX II-24LX produces eye-catching graphics with up to 27.8 ips cutting speed, up to 350 grams of cutting force and guaranteed 3-meter tracking.
Ideal uses of this superior PUMA GCC Plotter include:
- Custom Vinyl Decals & Graphics cutting for Cars, Walls & More
- Custom Perforated car window stickers
- Car Wrapping (vehicle clear/preprinted wrapping machine)
- Car Stickers (Custom vehicle, Boats, Sea-doo and Trailer stickers)
- Film paper die-cutting machine
- Commercial vinyl die-cutting machine
- Custom Vinyl Signs
- Plotting different types of heat transfer media for T-shirts and apparel decoration.
- Custom cutting of sublimation transfers, rhinestone transfers, and screen-printed transfers
- Sandblasting film cutting
- Light Box Film (Lightbox filming cutting machine)
- 3m diamond grade reflective film
- invisible car clothing
- graphics and lettering cutting
- Vinyl adhesive film
Specifications
- Max. Cutting Width – 600 mm (23.6 in.)
- Max. Media Width – 719 mm (28.3 in.)
- Optional stand
- Acceptable Material Thickness – 0.8 mm
- Max. Cutting Force – 350 g
- Max. Cutting Speed(Diagonal) – 705 mm/sec (27.8 ips) (at 45 degree direction)
- Mechanical Resolution – 0.012 mm (0.00047 in.)
- Software Resolution – 0.025 mm (0.00098 in.)
- Distance Accuracy – ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability – ±0.1mm
- Tracking – 3M
- Memory Buffer – 1 MB / 500KB(when using AAS)
- Type of Command – HPGL, HPGL/2
- Configurable Origin – Yes
Repeat – Yes
Copy – Yes
Control Panel – 6 LEDs / 10 Keys
Diameter of Blade – 2.5 mm - Dimension(H x W x D) mm – 233*880*255
- Dimension (HxWxD) in – 9.1*34.6*10
- Net Weight – 11KG (24.3lb)
- Stand – Optional
- Power Supply – 100-240 VAC, 50 / 60 Hz (auto switching)
- Power Consumption – Max. 65 W
- Operation Environment
- Temperature – 15° C~30° C / 60°F~86° F
- Tangential mode – 25% ~ 75%
Features
Enhanced AAS II Contour Cutting SystemGCC Expert II LX model features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:
 1st-mark auto-detection |
 4-point positioning |
 Segmental positioning |
 Multiple copies |
Dual-port ConnectivityGCC Expert II Series supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC Expert II Series. Dual-port connectivity provides sign makers with great flexibility for data transmission.
Guaranteed 3 Meter TrackingGCC Expert II Series is built from the finest parts that come with every GCC cutter. It comes with stable drums that can guarantee 3 meter tracking to ensure quality outputs and save you materials and costs.
Handy Grooved Cut-off ToolThis handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material.
Windows DriversExpert II Series includes a “one click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Expert II Series, making it simple and easy to make signs with Expert52 LX.
User-friendly InterfaceThe control panel of Expert II Series is very user-friendly; it comes with the special VLCD software, providing a simple and intuitive workflow for users of all levels.
