Description

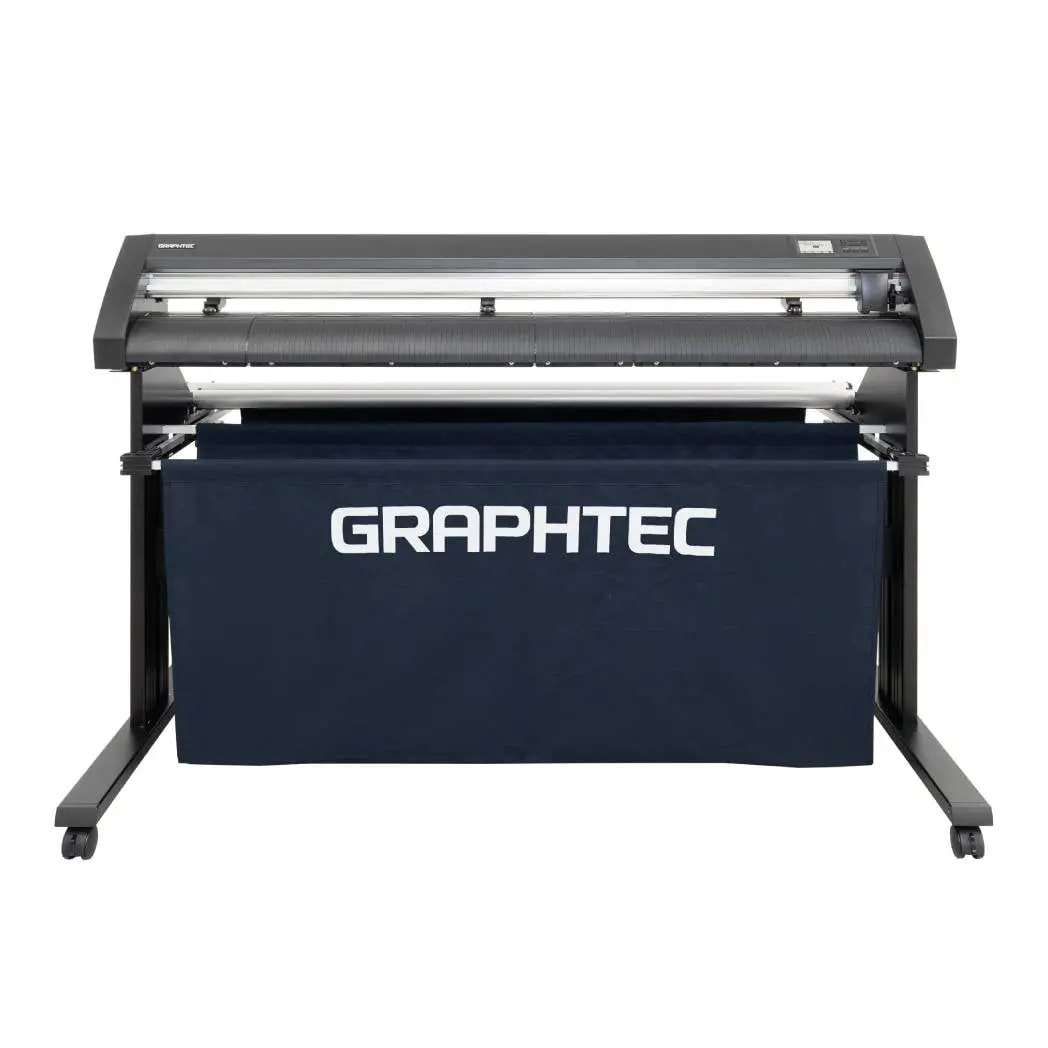

Graphtec Engineered AKZ model for TINT/PPF  – 54″ (Inch) with Stand and Media Basket Anti-electrostatic Kit.
CE8000-130 AKZ

NEW Touch screen panel

NEW wireless/USB connectivity.

These purchases include the new Graphtec CE8000-130 MKZ and installation for a Mimaki printer.

All sales are final and non-refundable. An exchange may be requested subject to vendor approval. Specific terms and conditions may apply.

Financing agreements cannot be cancelled once approved. Any cancellation request must be submitted before delivery or pickup of the item, and is subject to a 9% cancellation fee.

Ideal for:

Window Tint Films
PPF Films
Sticker & Decal Creation
• Window Signage
• Heat Transfer Apparel
and much more…

Also Best Plotter For:
• Self-Adhesive Vinyls
• HTV Materials
• Paper
• Card
• Stencil Materials

Graphtec Studio Software Features:

• Intuitive tools for drawing lines, shapes, and curves
• Full-featured text editor and layout alignment
• Point editing, resizing, rotation, mirroring
• Shadows, outlines, erase, and weld/crop/divide tools
• Patterned copies with Replicate
• Bitmap tracing and contour cut line creation
• Auto registration marks for accurate print & cut
• Custom color, gradient, and pattern fills
• Control multiple cutters and adjust settings with ease

NEW FEATURES IN THE GRAPHTEC CE-8000 SERIES

Connexion wifi

Install wherever you want, no more annoying or too short cables.

Loading assistance

A suction cup helps you to place and immobilize the media while loading it.

Touch screen & navigation intuitive

Increased ease of use, quick access to essential functions through intuitive icons.

Notification par email

The end of the job and/or an error during cutting can be notified to the user by e-mail.

Speed and precision

High-level cutting speed, precision and quality will be your best allies.

Half-flesh and full-flesh cut

Perform both half-cut and full-cut with just one tool.

Work offline

Retrieve your dedicated files from a simple USB key to cut without a PC.

Barcode management

Start the operation with one click, the machine detects and reads the barcode to find and cut the desired file.

Maximize your production

Multi-brand compensation (Matrix Copies) allows for a minimum margin.

Cutouts can be placed outside the alignment marks for optimal media utilization.

Optional Accessories & Upgrades:

• Media Catch Baskets
For the ability to enhance the machines tracking capabilities from 2m to 5m.

• Carrier Sheet Table
To keep sheet fed media or media that is attached to a carrier sheet level and supported as it passes through the machine.

• Additional Push Roller Kit
For enhanced media tracking capabilities – Only for 130cm and 160cm versions.

• Media Flange Kit

Helps to reduce rolling resistance for heavier rolls of media and improves the tracking capabilities of your CE 8000 Series plotter with the Graphtec Media Flange Set.

Technical Specifications:

Feature	Specification
Machine Width	1300mm (50”)
Max Mountable Media Width	1372mm
Max Cutting Speed	1000mm/s @ 45°
Guaranteed Cut Accuracy	1250mm x 2m (5m with basket)
Push Rollers Supplied	4
External Dimensions (WxDxH)	1704 x 811 x 1215 mm
Weight	51 kg
Stand & Basket	Include
