Description

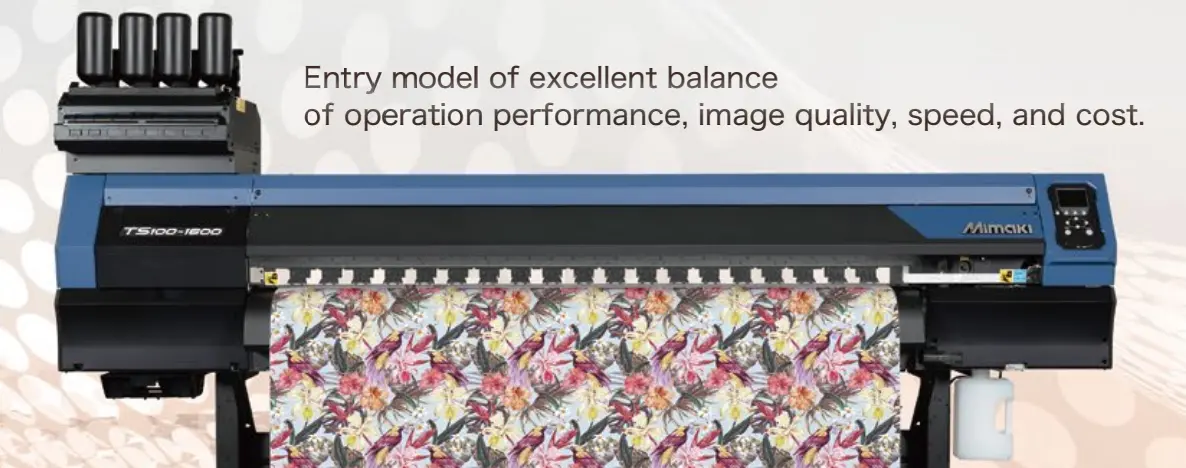

The Mimaki TS100-1600 is a high-performance, 64-inch dye sublimation printer designed for startups and print shops entering the textile market. Delivering speeds up to 753 sqft/hr, this entry-level unit features fully automated dot adjustment and nozzle recovery systems, ensuring professional quality sportswear and soft signage without the high capital investment.
Professional Performance. Accessible Price.
Launch your textile production with confidence. The TS100-1600 balances affordability with the operational speed required for commercial orders. It prints at speeds up to 753 sqft/hr (70 m²/h), allowing Canadian businesses to handle fast-turnaround jobs like team uniforms, fashion apparel, and personalized merchandise.
Designed for ease of use, this machine drastically reduces the learning curve for new operators. It ships with RasterLink7, a simplified RIP software that improves processing speed by 25% and supports variable data printing for custom name and number applications.
Automated Stability and Reliability
Minimize downtime with intelligent automation. The TS100-1600 is equipped with the Dot Adjustment System (DAS), which automatically aligns ink droplet placement and corrects media feed settings. This eliminates manual calibration errors and ensures consistent image sharpness.
-
Nozzle Check Unit (NCU): Automatically monitors printhead performance and detects clogs.
-
Nozzle Recovery System (NRS): Instantly substitutes unproductive nozzles with working ones, allowing production to continue uninterrupted until maintenance can be performed.
-
Stable Transport: Features a reliable winding system that prevents media telescoping, ensuring long runs can be left unattended.
Cost-Effective Production
Keep running costs low. The printer utilizes Sb610 Dye Sublimation Ink in large 1-liter bottles, which significantly reduces ink costs compared to traditional cartridge systems. This high-density ink delivers vibrant colours—Blue, Magenta, Yellow, and Black—ideal for both rigid and soft polyester substrates.
Key Features
-
High-Speed Output: Prints up to 753 sqft/hr (70 m²/h) to meet commercial deadlines.
-
Automated Calibration: DAS (Dot Adjustment System) automates bi-directional and feed adjustments.
-
Continuous Operation: NCU and NRS technologies prevent downtime from nozzle clogs.
-
Cost-Efficient Ink: Uses 1L bottles of Sb610 ink to lower production costs.
-
Advanced Software: Includes RasterLink7 RIP software for faster processing and ease of use.
Specifications
| Feature | Details |
| Printhead | Two staggered, on-demand piezo heads |
| Print Resolution | 360, 600, 720, 900 dpi |
| Print Speed | Up to 753 sqft/hr (70 m²/h) |
| Maximum Print Area | 63.3″ (1610.0 mm) |
| Maximum Media Width | 63.8″ (1620 mm) |
| Maximum Media Thickness | Up to 0.04″ (1 mm) |
| Maximum Media Weight | Up to 99.2 lbs (45 kg) |
| Ink Type | Dye Sublimation Ink Sb610 (Bl, M, Y, K) |
| Interface | Ethernet 1000 BASE-T / USB 2.0 |
| Power Supply | AC100~120V / 200~240V±10%, 50/60Hz±1Hz |
| Power Consumption |
100V: 1,440W or less 200V: 1,920W or less |
| Operational Environment |
Temp: 68°F – 86°F (20°C – 30°C) Humidity: 35% – 65% RH |
| Dimensions (W x D x H) |
109.3″ x 27.6″ x 58.1″ (2,775 x 700 x 1,475 mm) |
| Weight | 366 lbs (166 kg) |
| Certifications | VCCI class A, FCC class A, CE Marking, CB, ENERGY STAR®, RCM, EAC |
Why Choose the TS100-1600?
The TS100-1600 is the perfect “first step” for Canadian shops expanding into textiles. It removes the barriers of high cost and complexity, offering industrial features like NCU and DAS at an entry-level price point. Ships fast from our warehouse and sets up quickly with standard power requirements.
