Description

$125/Month Limited Time Promo – The New Jaguar V-LX GCC J5-163LX 70.2″ (64″ max Cutting Size) Vinyl Cutter Plotter Includes a FREE Media Basket.

The machine comes with two years of Part’s warranty from GCC.

• The best unit for Window Tinting

• PPF – Paint Protection Film Plotter

• Maximum compatibility with Tinting and PPF Third-Party Template Software

• Open Financing and Leasing are available.

*The lease price is based on a $700 lease down payment.

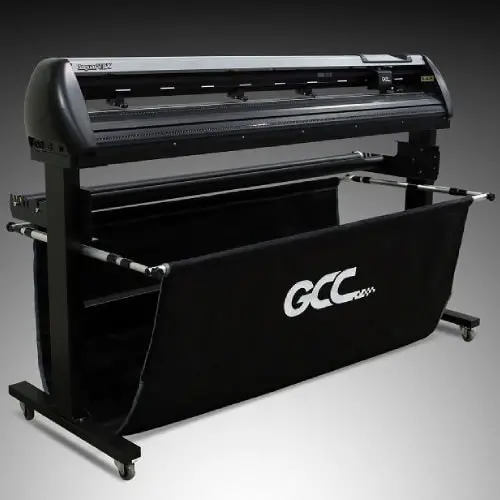

With intuitive features to meet the demands of today’s professionals, the Jaguar V LX J5-163LX  represents the apex of vinyl-cutting plotter technology.

Ideal uses of this superior Jaguar Unit include:

• Window Tinting (Window Tint Cutting machine)
• Custom Vinyl Decals & Graphics cutting for Cars, Walls & More
• PPF – Paint Protection Film Plotter
• PPF Xpel Self-Healing paint protection film
• SunTek Self-Healing PPF Top-Coated Paint Protection Film
• Other PPF Self-Healing Films like VViViD 3M Scotchgard Karlor and more…
• Custom Perforated car window stickers
• Car Wrapping (vehicle clear/preprinted wrapping machine)
• Car Stickers (Custom vehicle, Boats, Sea-doo and Trailer stickers)
• Film paper die-cutting machine
• Commercial vinyl die-cutting machine
• Custom Vinyl Signs
• Plotting different types of heat transfer media for T-shirts and apparel decoration.
• Custom cutting of sublimation transfers, rhinestone transfers, and screen-printed transfers
• Sandblasting film cutting
• Light Box Film (Lightbox filming cutting machine)
• 3m diamond grade reflective film
• invisible car clothing
• graphics and lettering cutting
• Vinyl adhesive film

In our assessment, this unit is greatly superior to the Roland Plotters.

Our preference for this unit over Roland is based on several compelling reasons:

Key Advantages of the Jaguar:

• Enhanced Software Compatibility: Offers compatibility with a wide range of third-party software for added flexibility.

• Designed With a stylish appearance and new functional features

• Lower cost of different Blades such as Tinting, PPF blades and more…

• Complimentary Custom Cutting Software: Includes free custom cutting software, whereas Roland provides only cutting drivers.

• Selective Pinch Roller Positioning:  Selective Pinch Roller Positioning: Each pinch roller can be individually positioned and controlled to optimize functionality, making it a crucial feature that helps prevent damage to the vinyl or film media.

• True Max Cutting Size: Provides a larger max cutting size in some of the models.

• Guaranteed 10m Tracking Ability: Ensures precise tracking ability over long runs, enhancing accuracy.

• Efficient Throughput: Achieves cutting speeds of up to 60 inches per second, surpassing competitors for higher productivity.

• Triple Port Connectivity: Features triple port connectivity options for versatile and reliable connections.

• Innovative Tangential Mode: Incorporates an innovative tangential mode for improved cutting performance.

• User-Friendly Control Panel: Equipped with a user-friendly control panel for ease of operation.

• GCC One-Click Windows Driver: Includes a convenient one-click Windows driver for seamless integration with CorelDRAW and Adobe Illustrator.

• Larger LCD Display: Boasts a larger, easy-to-use LCD display for enhanced user experience.

Items Included

• GCC J5-160LX

• Media Basket

To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

Specifications

• Operational Method – Roller-Type
• Max. Cutting Width – (64 in.)
• Max. Media Loading Width – 1782mm (70.2 in.)
• Min. Media Loading Width – 50 mm (1.97 in.)
• Number of Pinch Rollers – 6
• Acceptable Material Thickness – 0.8 mm (0.03 in.)
• Drive Motor – DC Servo Control
• Max. Cutting Force – 600 g
• Max. Cutting Speed – 1530 mm/sec (60 ips) (at 45° direction)
• Acceleration – 4.2 G (gravity)
• Offset – 0~1.0 mm (with an increase of 0.025mm)
• Memory Buffer – 32 MB /16 MB (when using AAS)
• Interfaces – USB 2.0 (Full Speed), Serial (RS-232) and Ethernet
• Type of Command – HP-GL, HP-GL/2
• Mechanical Resolution – 0.006 mm
• Software Resolution – 0.025 mm
• Distance Accuracy – ±0.254 mm or ±0.1% of move, whichever is greater
• Repeatability – ±0.1mm
• Automatic-Aligning System – Yes, including Segmental Positioning and Auto Rotation functions
• Auto Rotation – Yes
• Section Cutting – Yes
• Curve & Arc Smoothing – Yes
• Configurable Origin – Yes
• Test Cut Capability – Yes
• Tangential Mode – Yes
• Over Cut – Yes
• Repeat – Yes
• Copy – Yes
• Control Panel – LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
• Diameter of Blade – 2.5 mm
• Power Supply – 100 ~ 240VAC 50/60Hz (auto switching)
• Power Consumption – Max. 250 W
• Dimension (HxWxD) mm – 1127 * 1962 * 756
• Dimension (HxWxD) in – 44.4 * 77.2 * 29.8
• Net Weight – 63 kg/ 138.6 lb
• Media Basket – Included
• Stand – Standard

Features

Enhanced AAS II Contour Cutting System

The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:

1st-mark auto-detection	4-point positioning
Segmental positioning	Multiple copies

Media Take-up System

GCC develops the Jaguar V PPF machine equipped with the professional Media Take-up System for roll-to-roll cutting that makes paint protection film (PPF) cutting much more efficiently and cost lower than manual cutting.

Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

Auto Rotation

New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

Segmental Positioning

Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

Triple Port Connectivity

Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.

Efficient Throughput

At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.

Guaranteed 10m Tracking Ability

The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.

Innovative Tangential Mode

The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

Media Support System

The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

User-Friendly Control Panel

The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users’ needs.

Selective Pinch Roller Positioning

Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.

Facilitate Efficient Workflow of Car Wrapping

The dedicated GCC Jaguar V (PPF) is the most cost-effective and high-performance vinyl cutter for streamlined vehicle wrap workflow. With the support of third-party cutting software containing the window tint and PPF pattern library, GCC Jaguar V (PPF) can accurately cut the vehicle patterns you require, making the wrapping process quicker and easier.

GCC One-Click Windows Driver

GCC cutting plotters include a One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
SKU: AT1000RCAP23
